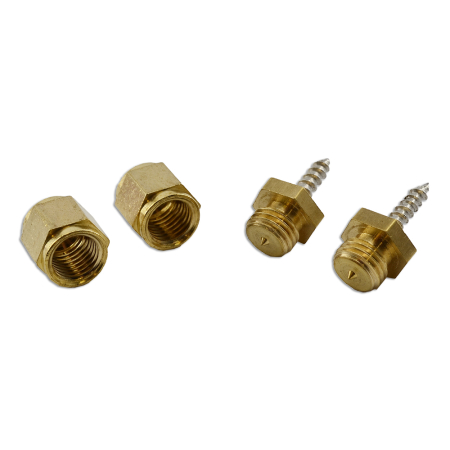

Brass Locators Type B - Glue Fixing

Product code: PROD-LBB

Brass heavy duty locators offer the option of a mechanical fixing to the sign which will ensure a reliable fixing for years, particularly when mounting heavier or larger than usual panels or displays. Easy to remove and refit for periodic... Read more

Suitable for glue fixing or welding.

Suggested screw size:
Medium - 3.5mm
Large - 4.0mm

M5 x 6mm internal thread

Brass locators and woodscrews for fixing sold separately.

Read less

Product

Size

Pack Size

Description

Measurements:

Medium socket:
Length 9.5mm
Socket width 11mm
Stud base diameter 11mm
Internal thread M8
Overall stand-off 13.5mm

Large socket:
Length 11mm
Socket width 15mm
Stud base diameter 15mm
Internal thread M10
Overall stand-off 13.5mm

Quantity Pricing

Stockcode	Description	Qty	Cost
LBBM1	Brass Locator Type B Glue Fix - Medium (Each)	1+	£0.64
LBBL1	Brass Locator Type B Glue Fix - Large (Each)	1+	£0.73
LBBL100	Brass Locator Type B Glue Fix - Large (Pack 100)	1+	£53.15
LBBM100	Brass Locator Type B Glue Fix - Medium (Pack 100)	1+	£34.20
LBMSCREWM	Screws for Medium Brass Locators - Pack of 100	1+	£1.13
LBMSCREWL	Screws for Large Brass Locators - Pack of 100	1+	£1.15

Dimensions

Brass Locator Type B Glue Fix - Medium (Each)
Height (mm)	6
Length (mm)	23
Width (mm)	6
Weight (kgs)	0.01
Brass Locator Type B Glue Fix - Large (Each)
Height (mm)	8
Length (mm)	17
Width (mm)	8
Weight (kgs)	0.02
Brass Locator Type B Glue Fix - Large (Pack 100)
Height (mm)	8
Length (mm)	17
Width (mm)	8
Weight (kgs)	1.48
Brass Locator Type B Glue Fix - Medium (Pack 100)
Height (mm)	6
Length (mm)	23
Width (mm)	6
Weight (kgs)	0.94
Screws for Medium Brass Locators - Pack of 100
Height (mm)	7
Length (mm)	30
Width (mm)	7
Weight (kgs)	0.12
Screws for Large Brass Locators - Pack of 100
Height (mm)	7
Length (mm)	40
Width (mm)	7
Weight (kgs)	0.46
